The O.K. Allen Bridge

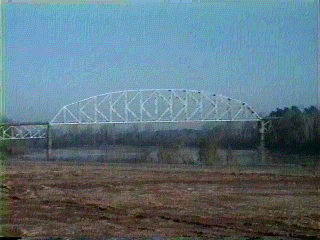

The O.K. Allen bridge is located on the Red River in Alexandria, Louisiana.

Here is a close-up of this classic K-truss:

Notice that the roadbed is located behind the bottom chord of the truss.

The weight of the traffic does not bend the bottom chord.

In this structural system, the truss members only experience axial load (tension or compression).
